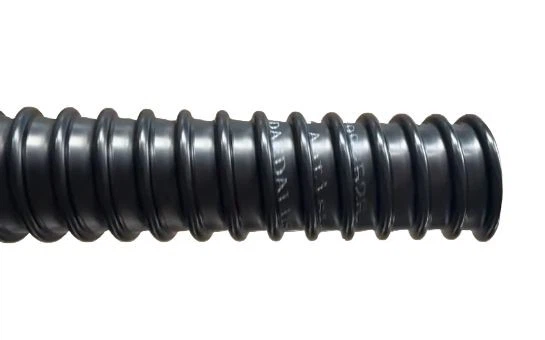

Hos konduktif elektrik warna hitam
956 1.5mm Ketebalan Dinding Hos Konduktif Elektrik TPU Gerek Licin Tebal Dinding
|
Bahan
|
Ciri
|
Aplikasi
|
Struktur
|
| Nombor Bahagian | Dalaman Diameter |
dinding Ketebalan (Toleransi) |
Berat badan | Membongkok Jejari |
Kerja Tekanan |
vakum | Gegelung Panjang |
| mm | mm (+/- 0.1) | kg/m | mm | bar | bar | m | |
| 956-016-20 | 16 | 1.3 | 0.22 | 18 | 3.12 | 0.90 | 20 |
| 956-018-20 | 18 | 1.3 | 0.23 | 21 | 3.01 | 0.90 | 20 |
| 956-020-20 | 20 | 1.3 | 0.24 | 25 | 2.98 | 0.90 | 20 |
| 956-025-20 | 25 | 1.4 | 0.28 | 32 | 3.29 | 0.90 | 20 |
| 956-032-20 | 32 | 1.5 | 0.44 | 42 | 2.93 | 0.87 | 20 |
| 956-038-20 | 38 | 1.5 | 0.52 | 48 | 2.77 | 0.86 | 20 |
| 956-040-20 | 40 | 1.5 | 0.54 | 50 | 2.75 | 0.86 | 20 |
| 956-045-20 | 45 | 1.5 | 0.60 | 55 | 2.46 | 0.85 | 20 |
| 956-051-20 | 51 | 1.5 | 0.66 | 60 | 2.21 | 0.84 | 20 |
| 956-055-20 | 55 | 1.5 | 0.72 | 65 | 2.03 | 0.79 | 20 |
| 956-060-20 | 60 | 1.5 | 0.78 | 70 | 1.85 | 0.73 | 20 |
| 956-065-20 | 65 | 1.5 | 0.84 | 75 | 1.72 | 0.68 | 20 |
| 956-070-20 | 70 | 1.5 | 0.98 | 97 | 1.60 | 0.60 | 20 |
| 956-076-20 | 76 | 1.5 | 1.05 | 103 | 1.49 | 0.55 | 20 |
| 956-080-20 | 80 | 1.5 | 1.11 | 109 | 1.40 | 0.50 | 20 |
| 956-090-20 | 90 | 1.5 | 1.25 | 121 | 1.17 | 0.38 | 20 |
| 956-102-10 | 102 | 1.5 | 1.51 | 136 | 1.10 | 0.35 | 10 |
| 956-110-10 | 110 | 1.5 | 1.63 | 145 | 1.03 | 0.32 | 10 |
| 956-115-10 | 115 | 1.5 | 1.68 | 151 | 0.98 | 0.30 | 10 |
| 956-120-10 | 120 | 1.5 | 1.77 | 157 | 0.95 | 0.28 | 10 |
| 956-127-10 | 127 | 1.5 | 1.84 | 163 | 0.91 | 0.27 | 10 |
| 956-130-10 | 130 | 1.5 | 1.92 | 170 | 0.85 | 0.24 | 10 |
| 956-140-10 | 140 | 1.5 | 2.03 | 181 | 0.81 | 0.22 | 10 |
| 956-152-10 | 152 | 1.5 | 2.44 | 196 | 0.74 | 0.18 | 10 |
| 956-160-10 | 160 | 1.5 | 2.56 | 205 | 0.70 | 0.17 | 10 |
| 956-170-10 | 170 | 1.5 | 2.72 | 217 | 0.67 | 0.15 | 10 |
| 956-175-10 | 175 | 1.5 | 2.79 | 223 | 0.65 | 0.14 | 10 |
| 956-180-10 | 180 | 1.5 | 2.87 | 229 | 0.63 | 0.14 | 10 |
| 956-203-10 | 203 | 1.5 | 3.12 | 256 | 0.57 | 0.12 | 10 |
| 956-225-10 | 225 | 1.5 | 3.50 | 286 | 0.50 | 0.10 | 10 |
| 956-254-10 | 254 | 1.5 | 3.88 | 316 | 0.46 | 0.08 | 10 |
| 956-275-10 | 275 | 1.5 | 4.26 | 346 | 0.41 | 0.07 | 10 |
| 956-280-10 | 280 | 1.5 | 4.33 | 352 | 0.41 | 0.07 | 10 |
| 956-300-10 | 300 | 1.5 | 5.16 | 376 | 0.38 | 0.06 | 10 |
